Product Details:
|
| Compressive Strength: | 0.08 MPa | Tempreture: | 1260 |
|---|---|---|---|
| Bulk Density: | 96-280kg/m3 Or Customized | Efractoriness: | 1790 |
| Working Temperature: | 1000-1350 | Apparent Porosity: | 18 |
| Acid Resistance: | Excellent | Fiber Diameter: | 3-5um |
| Working Tem: | 1100 | Ceramic Fiber Blanket: | Ceramic Fiber Blanket |
| Tensile Strength: | 0.08 MPa | Shape: | Blanket Or Board |
| Flame Resistance: | Non-flammable | Flexibility: | Flexible |
| Fire Resistance: | Non-combustible | ||
| Highlight: | 5mm Ceramic Fiber Paper,2mm Ceramic Fiber Paper,1mm Ceramic Fiber Paper |
||

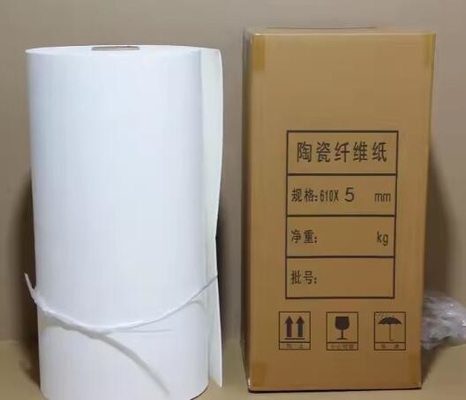

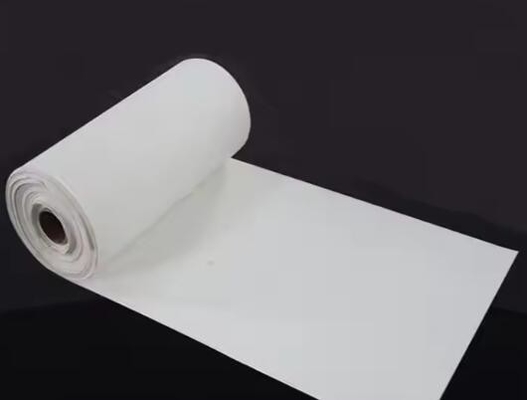

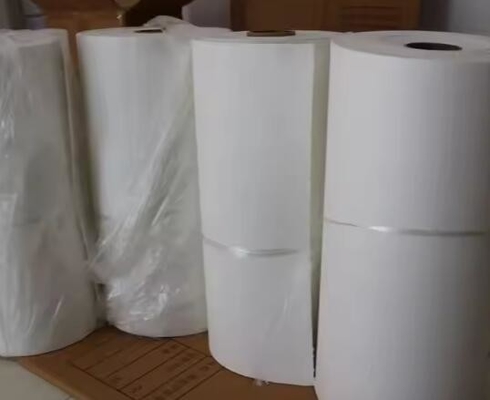

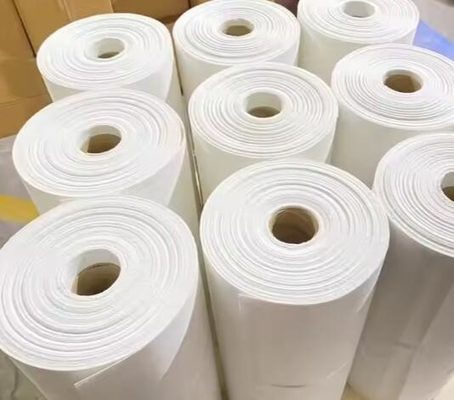

Ceramic Fiber Paper(ceramic fiber wool paper gasket) is processed from the high purity fiber, which can be used in the field of high temperature insulation. Because we have adopted the advanced processing work, we cannot only make the fiber interweave shapely, but also can control the thickness and the density rigidly.
We can produce Standard ceramic fiber paper,High pure ceramic fiber paper,High Aluminium ceramic fiber paper,Zirconium ceramic fiber paper,the use of temperature can reach 1350C, and have excellent eco-friendly performance.
Characteristics of ceramic fiber paper:
1:Low thermal capacity
2:Low thermal conductivity
3: Excellent electrical insulation properties
4:Excellent machining performance
5: High strength, tear resistance
6: High flexibility
7:Low slag content
8:Excellent fire proof property
Standard size:
60000x610x1mm / 30000x610x2mm / 20000x610x3mm / 15000x610x4mm / 12000x610x5mm / 10000x610x6mm
Specifications of ceramic fiber paper:
| Type | Standard ceramic fiber paper | High pure ceramic fiber paper | High Aluminium ceramic fiber paper | Zirconium ceramic fiber paper | |
| Chemical analysis (%) | AL2O3 | 43 | 47 | 55 | 38 |
| SiO2 | 53 | 51 | 44 | 44 | |
| Fe2O3+Ti2O3 | ≤1.2 | ≤0.3 | ≤0.3 | ≤0.2 | |
| CaO+MgO | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | |
| NaO+K2O | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.2 | |
| Crganic Content (%) | 5% | ≤5% | ≤5% | ≤5% | |
| Density(kg/m3) | 180-220 | 180-220 | 180-220 | 180-220 | |
| Work Temperature | 1050 | 1150 | 1250 | 1350 | |
| Thickness | 0.5-12mm | ||||
| size (mm) | 40000x1220x1;40000x610x1; 30000x1220x2; 30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5 | ||||
Application of ceramic fiber paper:
1:Industrial insulation, sealing, anti-corrosion material
2:Insulation material for instruments and heating element
3:Insulation material for automobile and aerospace industry
4:Expansion joints filling material
5:Isolation for construction material, metallurgy and glass industries,
6:Molten metal sealing gasket
7:Fireproof material
8:Substitute for glass fiber and asbestos fiber
