Industrial Furnace Insulation Materials High Pure Ceramic Fiber Wool Aluminum Silicate Blanket

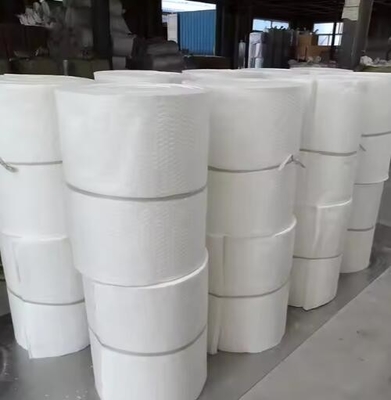

Large Image : Industrial Furnace Insulation Materials High Pure Ceramic Fiber Wool Aluminum Silicate Blanket

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001
Model Number:	10101-52-7

Payment & Shipping Terms:

Minimum Order Quantity:	400 rolls

Contact Now

Industrial Furnace Insulation Materials High Pure Ceramic Fiber Wool Aluminum Silicate Blanket

Description

Shape:	Blanket	Usage:	Furnace Liner
Temperature:	1260C	Colour:	White
Packing:	Inside Plasric Bag	Working Tem:	1100
Width:	610mm	Chemical Content:	Al2O3+SiO2
Chemical Composition:	Al2O3-SiO2	Compressive Strength:	0.08MPa
Temperature Rating:	1260°C	Service Temperature:	1000-1300 Degree
Thermal Conductivi:	0.17	Fiber Diameter:	5um
Efractoriness:	1790
Highlight:	Industrial Furnace Insulation Materials , Ceramic Fiber Wool Aluminum Silicate Blanket , aluminum silicate fiber blanket

Features of Ceramic Fiber Insulation Blanket



High heat oven insulation blanket is made of high quality alumina-silicate ceramic fiber by using double side needling methods which improve the tensile strength and the flatness of the ceramic fiber blanket. 2. High heat oven insulation blanket contains no organic binders which guarantee the stability and constructability of the ceramic fiber blanket at both high temperature and low temperature. 3.Temperature: 1100-1430C.Our products have high heat insulation efficiency and light weight, which are the ideal choice for your heat insulation needs. 4.Ultra-high density: 96/128/160 Kg/ M3, fine and soft texture, make our insulation blanket your best choice!

Product Application

Application of Ceramic Fiber Blanket

Industry	Applications
Ceramic industry	Kiln car insulation and seals, Continuous and batch kilns
Steel industry	Heat treating and annealing furnaces, Furnace door linings and seals, Soaking pit covers and seals, Furnace hot face repairs, Reheating furnace and ladle covers,
Refining and petrochemical industry	Reformer and pyrolysis lining, Tube seals,gaskets and expansion joints, High temperature pipe,duct and turbine insulation Crude oil heater linings
Power generation industry	Boiler insulation,Boiler doors,Reusable turbine covers,Expansion seals/pipe coverings
Other	Insulation of commercial dryers and ovens Veneer over existing refractory Stress relieving insulation Glass furnace crown protection Fire protection

Specification

Item	1260 Blanket	1400 Blanket	1500 Blanket	1600 Blanket
Classification temperature ( °C)	1260	1425	1500	1600
Melting point (°C)	1760	1700	1760	-
Colour	White	White	Blue gree	White
Fiber diameter ( u m)	2.6	2.8	2.65	3.1
Fiber length (mm)	~250	~250	~150	~100
Linear shrinkage(%)	(1100oC x 24 hrs)1.8	(1300 o C x 24 hrs) 1.5
Shot content (>212 micro meter) (%)	18	18
