Product Details:
|
| Product Name: | Ceramic Fiber Blanket | Material: | Ceramic Fiber |
|---|---|---|---|
| Color: | White | Apparent Porosity: | 18 |
| Efractoriness: | 1790 | Packing: | Inside Plasric Bag |
| Highlight: | high temperature insulation blanket,ceramic insulation blanket |
||

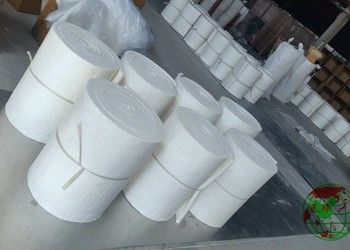

White Color Insulation Blanket / Ceramic Fiber Blanket For Industrial Kiln / Furnave
Features:
ceramic fiber blanket is composed of long,flexible,interwoven fibers manufactured by the “blown”and the “spun”process yielding a strong,lightweight yet durable blanket for applications in a temperature range from 1100°C to 1430°C Ceramic fiber blanket has the heat resistance of a hard refractory with five times better insulation value.
Applications:
Ceramic Fiber Blanket is made of high purity Alumino-Silicate (and Zirconia) fibrous wool.
♦ Refractory back-up installation, general high temperature insulation
♦ Direct exposure to heat as furnace hot face lining,expansion joint seal,fire protection
Phsyical and chemical index:
| 1260 Blanket | 1400 Blanket | 1500 Blanket | 1600 Blanket | |
| Classification temperature ( °C) | 1260 | 1425 | 1500 | 1600 |
| Melting point (°C) | 1760 | 1700 | 1760 | - |
| Colour | White | White | Blue gree | White |
| Fiber diameter ( u m) | 2.6 | 2.8 | 2.65 | 3.1 |
| Fiber length (mm) | ~250 | ~250 | ~150 | ~100 |
| Linear shrinkage(%) | (1100oC x 24 hrs)1.8 | (1300 o C x 24 hrs) 1.5 | ||
| Shot content (>212 micro meter) (%) | 18 | 18 | ||
| Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201 | ||||
| 1260 blanket | 64 kg/m3 | 96 kg/m3 | 128 kg/m3 | 160kg/m3 |
| mean 400°C | 0.13 | 0.12 | 0.07 | 0.09 |
| mean 600 °C | 0.21 | 0.17 | 0.12 | 0.14 |
| mean 800°C | 0.30 | 0.25 | 0.16 | 0.20 |
| 1400 blanket | 128 kg/m3 | 160kg/m3 | ||
| mean 600 °C | 0.13 | 0.14 | ||
| mean 800 °C | 0.20 | 0.20 | ||
| mean1000 °C | 0.29 | 0.28 | ||
| Chemical composition (%) | ||||
| Al2O3 | 47.1 | 35.0 | 40.0 | 72 |
| SiO2 | 52.3 | 49.7 | 58.1 | 28 |
| ZrO2 | 15.0 | |||
| Cr2O3 | 1.8 | |||
| Bulk density(Kg/m3) | 64,96,128,160 | |||
| Available size(mm/roll) | 7200*600*6,12.5,20,25,38;3600*600*50 | |||
Zhengzhou Rongsheng Refractory Material Co., Ltd. is located in the hinterland of Central Plains, at the foot of Songshan Mountain, and adjacent to Zhengshao Highway, Longhai and Jingguang railways. The convenient transportation, abundant resources and high quality minerals provide favorable conditions for the production of refractory materials.
Established in the early 90s of twenty century, with continuous innovation and development, now we are a comprehensive enterprise in refractory material industry, covering metallurgy, building materials, electric power, chemical industry,etc.
Our main products: refractory material for industrial furnaces, such as high-alumina brick, clay brick, silicon brick, high-strength diatomite brick, light weight insulation brick, low iron mullite brick, etc.; anti-stripping alumina brick, alkali proof brick, phosphate brick for cement industry; For the industrial furnace and power boiler, we can provide abrasive brick, corundum brick, mullite brick, wear resistant castable, corundum castable, high strength low cement castable, impervious material, plastic refractory, etc.
Our main export markets : North America, Western Europe, Eastern Europe, South America, Southeast Asia, Eastern Asia, Mid East, Oceania, Africa
We have own workshop , advanced production line , experienced workman and stricted check out flow .
We always pursue the objective of "Honesty, Courtesy, Innovation, Dedication", the cornerstone of "Super Quality & Competitive Price", and the strategic goal of building Rongsheng brand, to serve the clients in a timely and effective way.
1. Are you a manufacture or trading company ?
Factory+ trade(mainly factories, at the same time, we operates other related products)
2. Can we visit your factory ?
Sure,welcome at any time, seeing is believing.
3. Is your company accept customization ?
We have own factory and excellent technical team, and we accept OEM service
4. What’s the MOQ of trial order ?
No limit, we can offer the best suggestions and solutions according to your condition.
5. Will your company supply samples ?
Yes, we do. The shipping charges should be undertaken by customer.
