Zero Expansion Silica Bricks with Low Residual Quartz and High Thermal Conductivity

Large Image : Zero Expansion Silica Bricks with Low Residual Quartz and High Thermal Conductivity

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001
Model Number:	10101-52-7

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton

Contact Now

Zero Expansion Silica Bricks with Low Residual Quartz and High Thermal Conductivity

Description

Bulk Density:	≥1.80%	Sample:	Provide
Compressive Strength:	≥50MPa	Characteristics:	Acid Refractory Material
Thermal Conductivity:	≤1.3W/m·K	Working Temperature:	1600-1900
Keyword:	Refractories Materials	Residual Quartz:	≤1.0 %
Cold Crushing Strength:	≥25	Rul:	≥1650 ℃
Raw Material:	Silica Sand	Package:	Wooden Pallets With Plastic Film Or According To Customer's Requirement
Processing Service:	Firing	Keywords:	Silica Brick
Feature:	High Refractoriness, Good Thermal Shock Resistance, Low Thermal Conductivity
Highlight:	Low Residual Quartz Silica Bricks , High Thermal Conductivity Silica Bricks , Zero Expansion Silica Bricks

Description For Silica Brick Silica brick is made of quartz stone material, the content of SiO2 is above 93%. It has good resistance to acid slag and good heat conductivity. And the refractoriness is 1690~1710°C,long-term use volume at high temperature is relatively stable.
Stable Capability, High Quality, Excellent Service, Competitive price is the most important advantage of our products.

Silica Brick Advantage
1. Excellent chemical attack resistance, slag resistance and acid resistance; 2. No pollution to products (such as molten glass, etc.); The main component of silicon brick is SiO2, and if there are blocks or surface droplets during use, the quality of molten glass will not be affected. 3. Excellent thermal stability, the product will not explode during hot repair, and the repair operation can be carried out directly; 4. High temperature volume stability, no shrink in burn repeatedly. 5. Small bulk density. The mass of the furnace can be reduced. 6. After repair (hot repair), there will be no peeling and other phenomena, and it is safe and reliable for long-term use;

Lightweight Silicon Insulation Brick


1. Silicon oxide is above 95%. 2. Good acid erosion resistance. 3. High softening point with temperature. 4. No shrink in burn repeatedly. 5. Temperature of refractoriness under load is above 1650º C.

Product Application

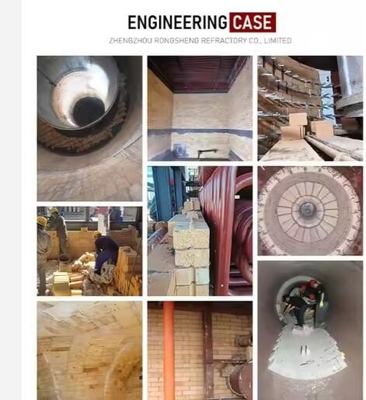

Refractory Silica Brick Application Silica bricks are mainly used for the partition walls of the carbonization chamber and combustion chamber of coke ovens, the regenerative chamber of steel making open hearth furnaces, soaking pits, refractory materials of glass furnaces, Tunnel kilns, rotary kilns, metallurgical furnaces,and ceramic firing kilns, as well as other load-bearing parts of kilns. It is also used for high-temperature load-bearing parts of hot air furnaces and acidic open hearth furnaces. Silica bricks are also widely used in construction and equipment in chemical, petroleum, pharmaceutical and other industries.

Specification

Item	Silicon brick for coke oven		Silicon brick for glass kiln
Item	Furnace bed	others	BG-96A	BG-96B	BG-95A	BG-95B
SiO2% ≥	94		96	96	95	95
Fe2O3 %≥	/		0.8	1.0	1.2	1.2
0.2MPa RUL°C ≥	1650		1680	1670	1660	1650
FUSION INDES: one BRICK<20kg one BRICK ≥20kg	/ /		0.5 0.6	/ /	0.7 0.7	/ /
True density g/cm3 ≤	2.34 2.35		2.34
PLC % 1450°C×2h	+0.2 0		/
AP % ≤	22(23)	24	22(24)
Thermal expansion 1000°C % ≤	1.28	1.30	/
CCS MPa ≥ one brick<20kg one brick≥20kg	30	25	35(30) 30(25)

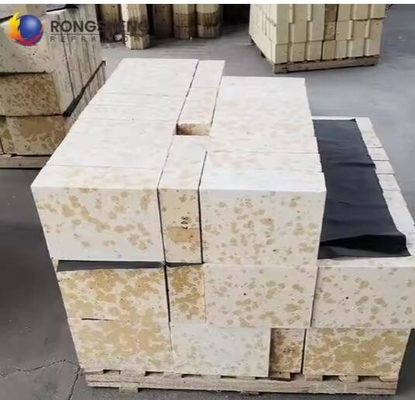

Packing & Delivery

Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.

Wooden pallets with plastic film or according to your request.

Strong packing protects the goods from any possible damage during transit.

Solid packing and overall stuffing prevent the cases from vibration and jarring.

Necessary precaution is taken to protect goods from pilferage or rain.
