Wholesale Fire-Resistant Checker Brick Silica Refractory Checker Bricks For Hot Blast Furnace

$Wholesale Fire-Resistant Checker Brick Silica Refractory Checker Bricks For Hot Blast Furnace$

$Wholesale Fire-Resistant Checker Brick Silica Refractory Checker Bricks For Hot Blast Furnace$

Large Image : Wholesale Fire-Resistant Checker Brick Silica Refractory Checker Bricks For Hot Blast Furnace

Product Details:

Place of Origin:	Henan, China
Brand Name:	RONGSHENG
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Ton

Contact Now

Wholesale Fire-Resistant Checker Brick Silica Refractory Checker Bricks For Hot Blast Furnace

Description

Bulk Density Dried:	≥2500	Feature:	Wearing Resistant
Aluminum Content:	≥55%	Type:	Wearing Resistant Refractory Materials
Chemical Resistance:	Excellent	Origin:	Xinmi
Compressive Strength:	40MPa	Iron Content:	≤2.0%
Thermal Shock Resistance:	Good	Bulk Density:	≥2.7
Shape:	Rectangular	Refractoriness Under Load:	Load: Min 1620°C
Weight Of Brick:	3-4KG/Pices	Thermal Conductivity:	1.5W/m·K
Working Temperature:	1450℃
Highlight:	Hot Blast Furnace Checker Brick , Fire-Resistant Checker Brick , Silica Refractory Checker Brick

Product Description

$Wholesale Fire-Resistant Checker Brick Silica Refractory Checker Bricks For Hot Blast Furnace 0$

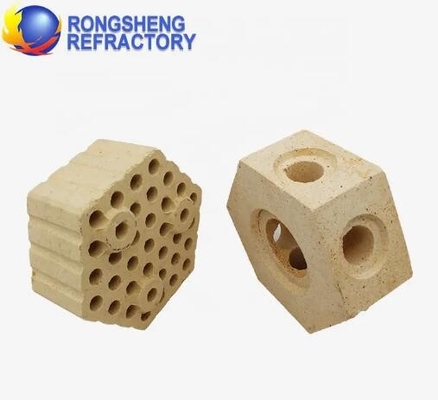

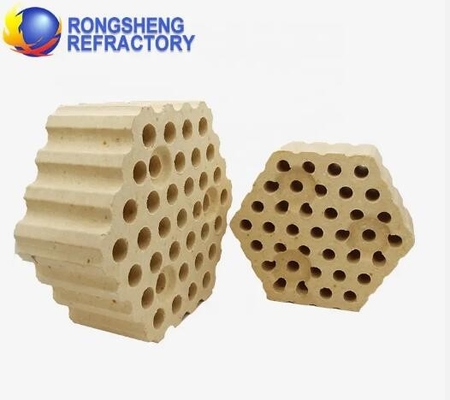

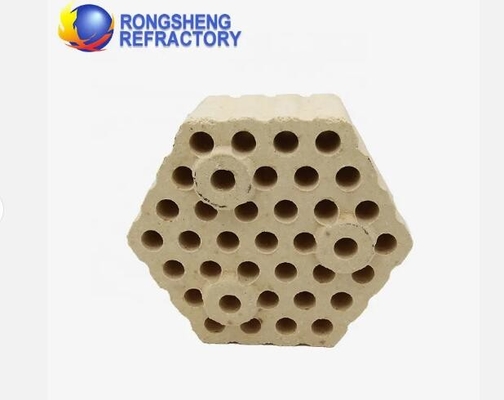

Description for Refractory Checker Brick Checker Brick is a kind of heat carrier with features of good volume stability, excellent high temperature load creep property, high density and low apparent porosity for application in hot blast stove of blast furnace and flame furnace. Checker Brick is a kind of heat-transfer medium, which is mainly used for middle-upper part of regenerative chamber in hot blast stove for thermal storage in the burning period. Checker Bricks play the extremely important function in the process of heating cool wind up to hot wind through convective heat exchange and radiation heat transfer in the blast period. Checker Brick is widely used in iron smelting industry as a kind of heat-carrier with excellent thermal engineering performance of strong heat exchange ability, large thermal storage area, smooth ventilation and low resistance. Checker Bricks are mainly used in the hot blast stove. When the hot wind is lower than 900℃, generally adopt fireclay bricks. When the wind temperature is higher than 900℃, adopt high alumina refractory bricks, mullite brick, sillimanite brick and silica refractory bricks and etc.

Features

$Wholesale Fire-Resistant Checker Brick Silica Refractory Checker Bricks For Hot Blast Furnace 1$

Features of Checker Brick

Good volume stability2.Good high-temperature loading creep property
High bulk density
Low apparent porosity

High purity,Low creep.
Good thermal conductivity.

Specification

Item	Silica Brick for Hot Blast Stove
	Wall bricks , Dome Bricks	Checker Brick


SiO2 %	≥95	≥95
A12O3%	≤1.0	≤1.0
Fe2O3%	≤1.0	≤1.0
Apparent Porosity%	≤22	≤24
True Densityg/cm3	≤2.33	≤2.33
Cold Crushing StrengthMPa	≥40	≥35
Refractoriness Under Load (0.2MPa) ℃	≥1650	≥1650
Residual Quartz%	≤1.0	≤1.0
Creep Rate 0.2MPa ((1550℃*50h) %	≤0.8	≤0.8
Reheat Linear Change ( 1450℃*2h) %	≤0.2	≤0.2
Heat Expansion Coefficient (1000℃) %	≤1.26	≤1.26
